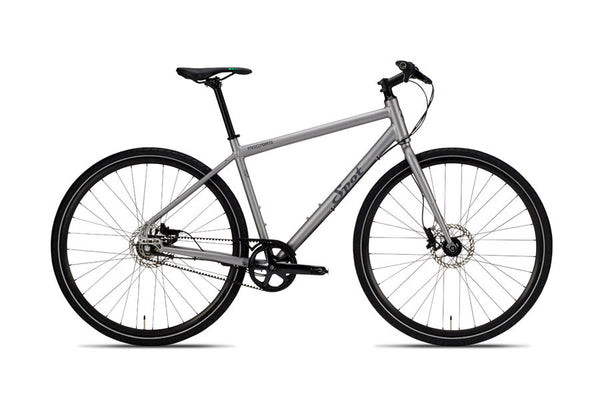

• 2016 Spot Brand Five Points

  • $1,400.00

  • ← Previous Product Next Product →

  • Share this product

Description

A New Favorite Bike for Urban Adventures

Every adult remembers their favorite childhood bike, the one you wish you still owned. The Five Points is that bike--all grown up. From its round alloy tubes and steel fork to the fat 40c tires, every detail on this go-getter and around-town ride is designed and engineered to inspire reminiscences that last a lifetime. The 3-speed hub provides the ideal gearing for cruising bike lanes or spanning the city. A no-grease belt drive completes the performance package. Five Points is an up-and-coming Denver neighborhood that has transformed and revitalized over the past decade. Where five streets converge, endless destinations await. And all of our street bikes have hard mounts for racks, fenders and a kickstand.

Gates CenterTrack:

Next generation Carbon Drive System. Unique, super-strong, carbon-reinforced polyurethane system that requires no lube and provides a nearly silent ride. CenterTrack is stronger, lighter, more compact, and better at shedding debris than the prior Gates systems.

Sram i-3 internally geared hub:

Super-high quality with simple shifting and low maintenance providing a 186% gear range.

Spot Custom 7005 Aluminum:

Proprietary, shaped, butted and tapered frame tubes designed for optimum strength, comfort, and durability. Lightweight aluminum tubing with precise tubing configurations for each frame size, results in a smooth and stable ride. Advanced performance styling of seat stays, top tube and down tube, in conjunction with finely tuned geometry deliver an astonishingly nimble ride in the urban environment.

Urban RocketSled Geometry:

Cruise with your head up and pass on the left.

Dropout Compatibility:

Newly designed Wagyū 2 Slider Dropouts allow belt-driven or chain-driven configurations, and painless wheel removal with no need to re-tension the belt.

Hydration Friendly:

Water bottle mounts on down tube and seat tube.

Fender and Rack Mounts:

Newly designed frame and fork accommodate full fenders and racks, for urban versatility and utility.

Five Points Component Specs

Component Brand Model
Fork Spot Brand CroMo, 400mm length, 28.6mm steerer
Front Pulley Gates CenterTrack, 50T, 130 BCD
Rear Pulley Gates CenterTrack, 24T, Alfine, Surefit
Belt Gates CenterTrack, 118T
Headset Cane Creek 10.ZA44 Tall Cover
Front Brake Avid DB1 Hydraulic
Rear Brake Avid DB1 Hydraulic
Crankset Gates FC-S100, 170mm
Handlebar Spot 620 mm width, 31.8 clamp, 9 deg sweep
Stem Spot 31.8, 6-deg, 110mm for sizes XL and L. 100mm for size M. 90mm for size S.
Seatpost Spot 27.2 mm x 400 mm
Rims Alex 32º, aero profile, presta valve
Front Hub Sram Disc front, 32º, QR
Rear Hub Sram i-Motion 3, disc, 32º
Tires Kenda 700x40C
Grips Ergon GC1
Saddle Spot Black with reflective green
Seat Clamp Spot 29.8 mm

Five Points Geometry Specs

GEOMETRY AND RECOMMENDED SIZING INFO
Frame Size Effective Toptube Length (in / mm) Seattube Length (in / mm) Headtube Angle (deg) Seattube Angle (deg) Chainstay Length Min, Max, As Shipped (in / mm) Headtube Length (in / mm) BB Drop (in / mm) Wheel Base (in / mm) Reach (in / mm) Stack (in / mm) Stand-over (in / mm) Rider Height
Small 21.3 / 540 16.5 / 420 69 74 Min 17.0 / 432
Max 18.0 / 457
As Shipped 17.4 / 443		 4.7 / 120 2.8 / 72 40.9 / 1039 15.1 / 384 21.3 / 543 26.6 / 676 5'5" - 5'8"
Medium 22.4 / 570 17.7 / 450 71 73 Min 17.0 / 432
Max 18.0 / 457
As Shipped 17.4 / 443		 5.5 / 140 2.8 / 72 40.9 / 1039 15.6 / 396 22.4 / 569 27.8 / 706 5'7" - 5'10"
Large 23.6 / 600 18.9 / 480 72 73 Min 17.0 / 432
Max 18.0 / 457
As Shipped 17.4 / 443		 6.3 / 160 2.8 / 72 41.8 / 1061 16.5 / 419 23.3 / 592 28.9 / 734 5'9" - 6'0"
X-large 24.8 / 630 20.5 / 520 72 73 Min 17.0 / 432
Max 18.0 / 457
As Shipped 17.4 / 443		 7.1 / 180 2.8 / 72 43.0 / 1092 17.5 / 443 24.0 / 611 30.3 / 769 5'11" - 6'6"
