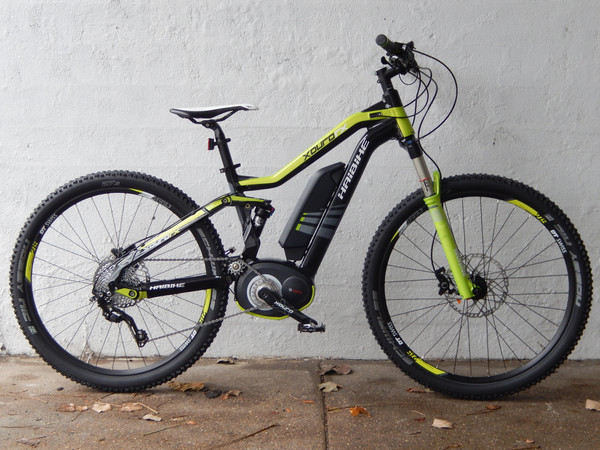

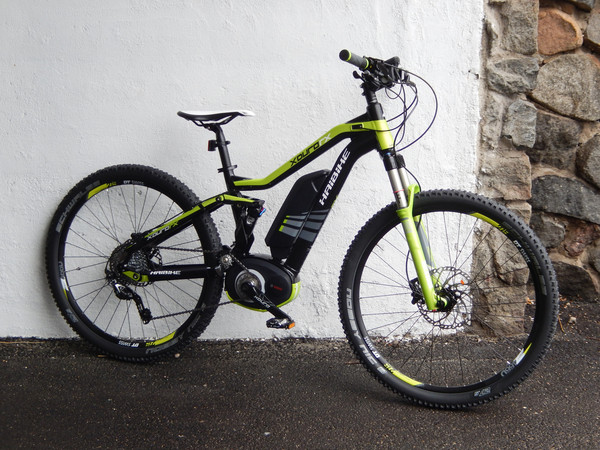

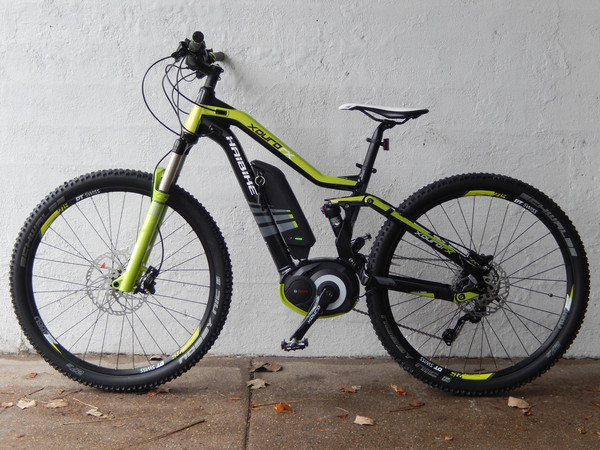

2015 Haibike XDURO FS RX 27.5

The new version of legendary fullies!

With a convincing combination of a sporty mountain bike and the dynamism of a motocross machine. Technically it holds up as well: 27.5“ wheels, a hydro form aluminium frame, with a light, stable interface

due to the Gravity-Casting process and the new Bosch performance motor. Available in two colours (black/white and black/lime).

There is a good reason behind the performance eBike boom: the Haibike XDURO range. The first models were introduced in 2009 and have been a success ever since! It is by far the most successful and comprehensive ePerformance range on the market.

Our secret? From the very beginning, we focused on combining sporty mountain bikes with the dynamics of an off‐road compatible motor. The result: a brand new riding experience! Limitless and pure riding enjoyment! Your own physical power is still an essential component of the XDURO riding experience. You can go all out or simply enjoy cruising along – it’s completely up to you.

The XDURO design promises what the technology delivers: the Pedelecs are not oversized mountain bikes, nor are they shrunken motocross machines. They are consistent, well‐proportioned performance eBikes. Their design has won the iF Design Award and the Eurobike Award, and has also been awarded the Extra-

Energy test seal of approval. You get what you see!

Technical Specifications:

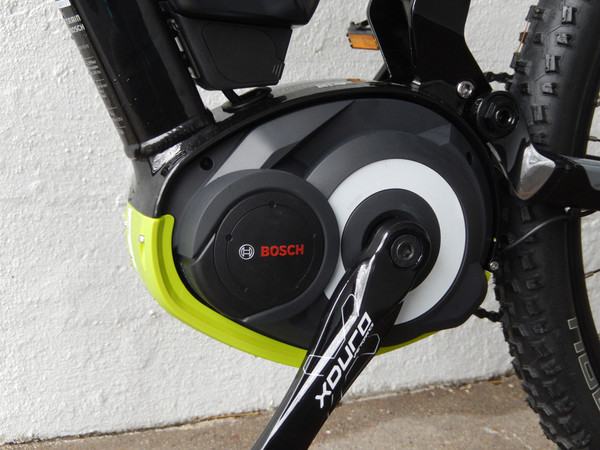

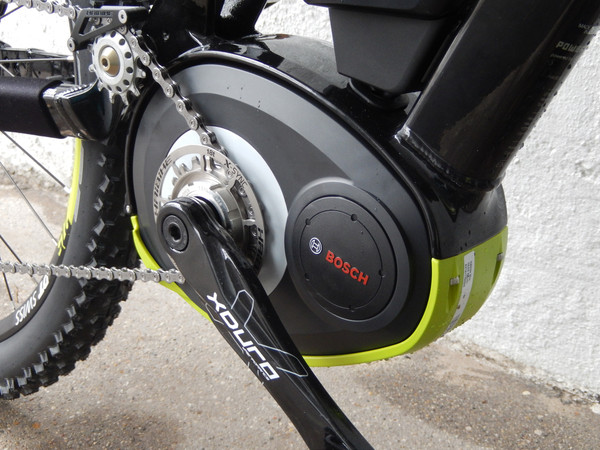

• Motor - Bosch Midmount Performance 36 Volt, 250 Watt

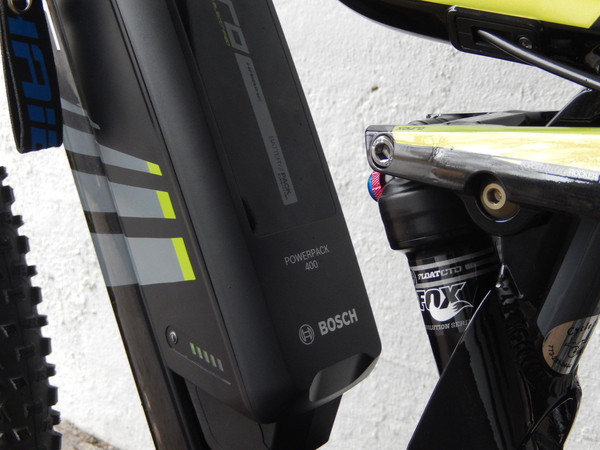

• Battery - Lithium Ionen 36 Volt, 400 WhDisplay -

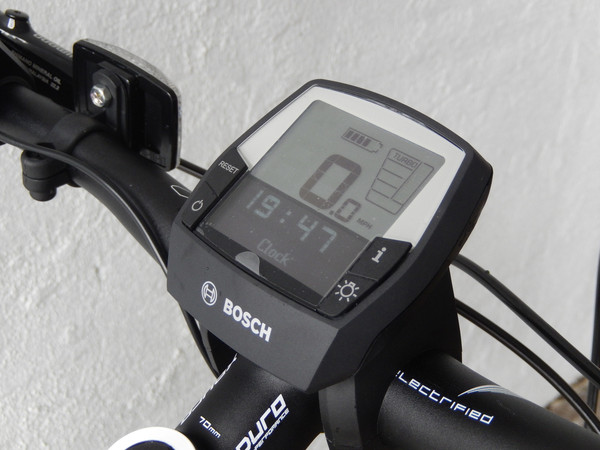

• Display - Bosch Intuvia multifunctional display with operation unit & push-assistance
• Frame - Aluminium 6061, 27.5", 120mm, 4-Link System, Equalizing System, Gravity Casting Interface, hydroforced tubes

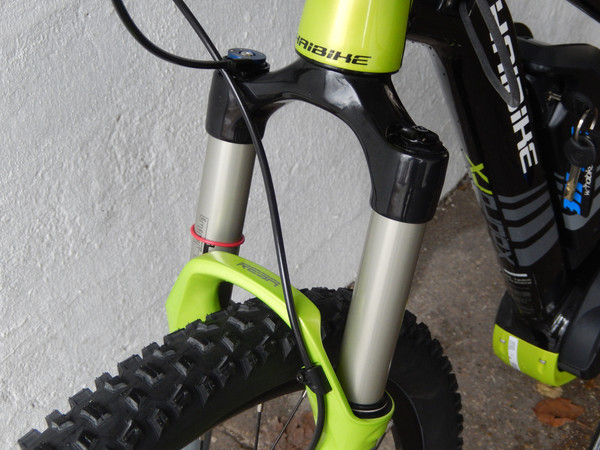

• Fork - Rock Shox Reba RL, Pushloc, Fsuspension: Dual Air (air), damping: Motion Control, travel: 120mm, tapered

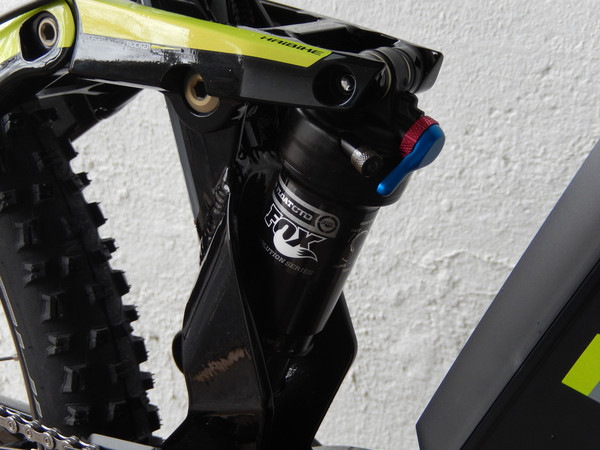

• Rear Shock - Fox CTD LV 190 mm, 8-22,2/22,2 mm

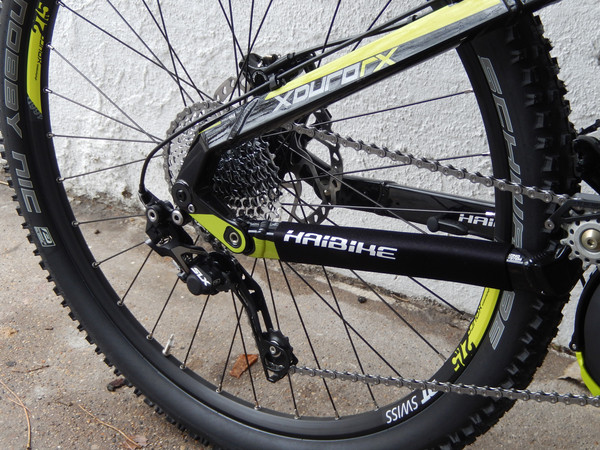

• Rear Derailleur - Shimano SLX M 675 Shadow Plus, 10-gear
• Shiftlever - Shimano SLX M 670, Rapidfire, I-Spec
• Crankset - Xduro aluminium
• Bottom Bracket - integrated in Motor
• Sprocket - Sram PG 1030, 11-36 T, 10-gear
• Chain - Shimano HG 54

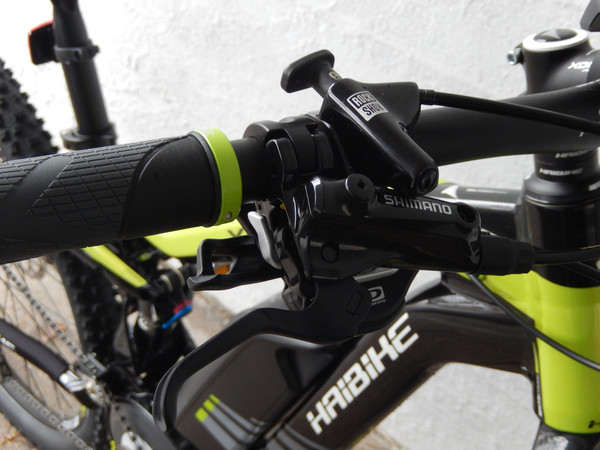

• Brake Lever - Shimano M 615 hydraulic disc brake
• Brake (Front) - Shimano M615 hydraulic disc brake, 203mm
• Brake (Rear) - Shimano Deore M 615 hydraulic disc brake, 180mm Disc
• Tires - Schwalbe Nobby Nic Performance, foltable, 27.5x2,25, SV Valve
• Rim - DT Swiss 466d Disc, alloy-double wall
• Hub (Front) - XLC EVO Disc, axle 15mm
• Hub (Rear) - XLC EVO Disc axle, 142/12mm
• Spokes - DT Swiss Industry, black 2,0mm
• Handlebar - Xduro Lowriser aluminium
• Grips - XLC Sport lock on grips
• Stem - Xduro aluminium, A-Head
• Headset - FSA No. 57, A-Head, semi-integrated, tapered
• Saddle - Xduro Light MTB
• Pedals - XLC MTB
